Portable Laser Marking Machine

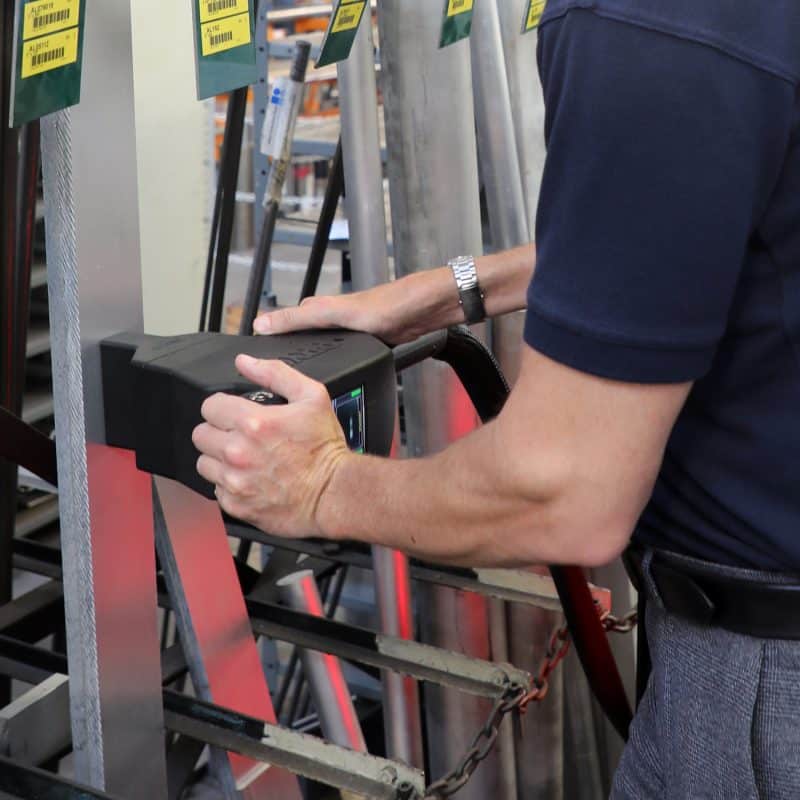

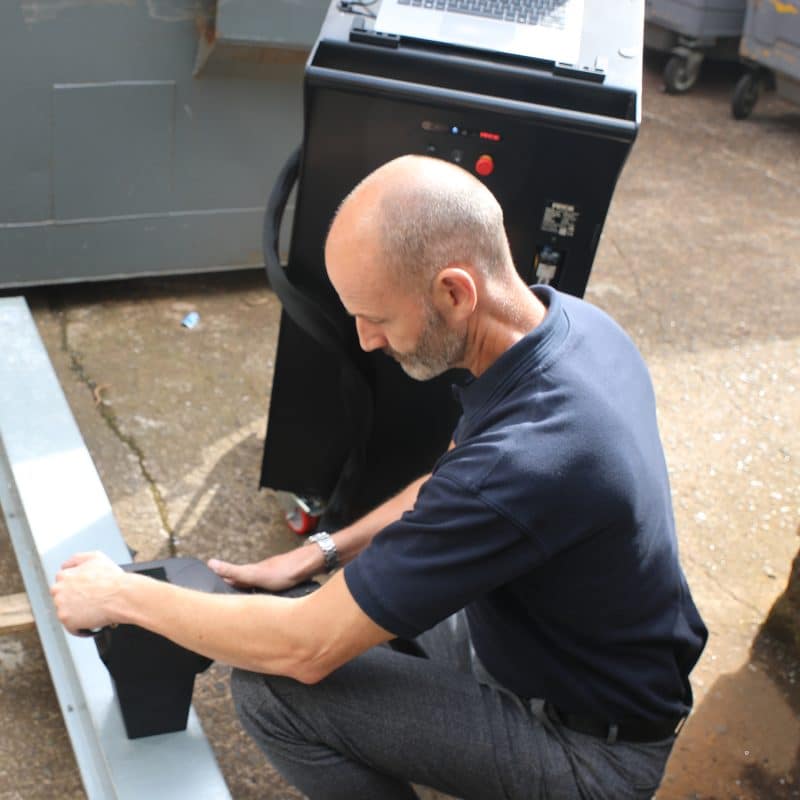

The Pryor Portable Laser is an incredibly mobile and versatile making system. This machine provides a quick and easy method for marking large, heavy or  immobile objects that are difficult to mark conventionally. The handheld laser marker is ideal for marking flat metal surfaces and is a great solution for producing, permanent, high contrast and detailed marking.

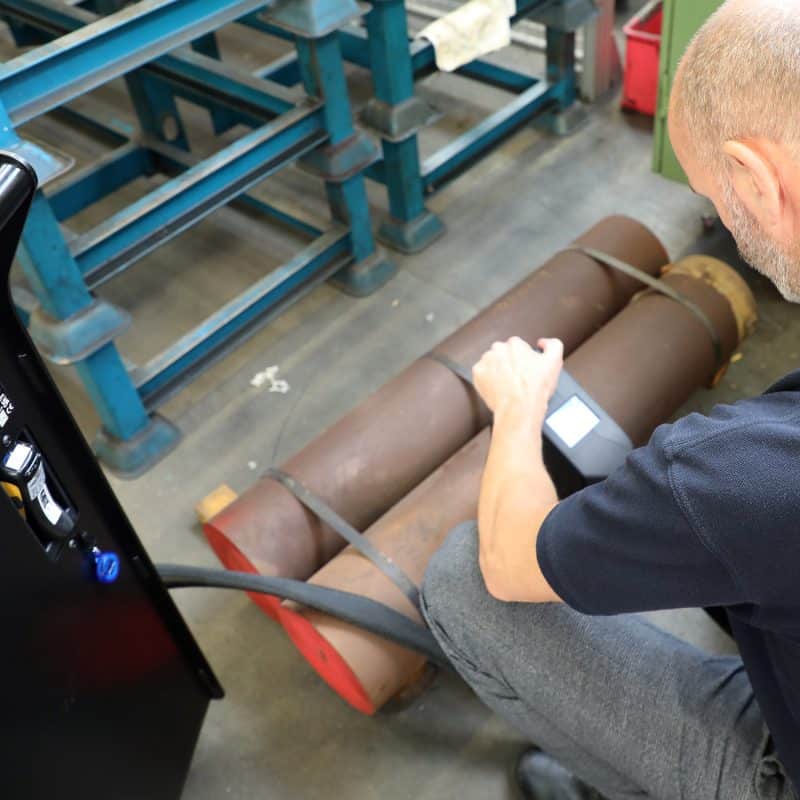

  • Laser mark large and immobile components

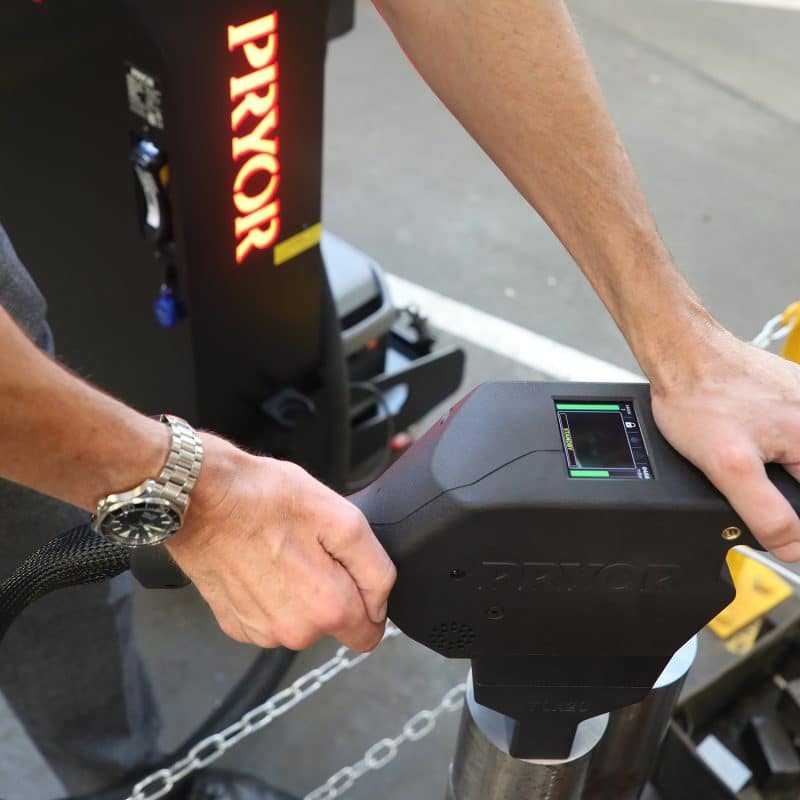

  • Ideal for steel stockholding to safely mark batch numbers, dates and steel grade information
  • Available on a manipulator for production line integration, with custom clamping options
  • Produces marks very fast, adding efficiency to your marking process
  • Range of marking areas available

Our Portable laser has an unmatched level of safety, combining a specially designed rubberised mask, 4x inbuilt contact sensors and vacuum sensor checking.

This three tier safety system ensures the marker is only operable when all conditions have been met. These elements mean we can classify our Portable Laser as a Class 1 laser safe system.

The Pryor Portable Laser is an incredibly mobile and versatile making system. This machine provides a quick and easy method for marking large, heavy or  immobile objects that are difficult to mark conventionally. The handheld laser marker is ideal for marking flat metal surfaces and is a great solution for producing, permanent, high contrast and detailed marking.

SKU: N/A Categories: ,

Clear
Make an Enquiry

Features

Overview

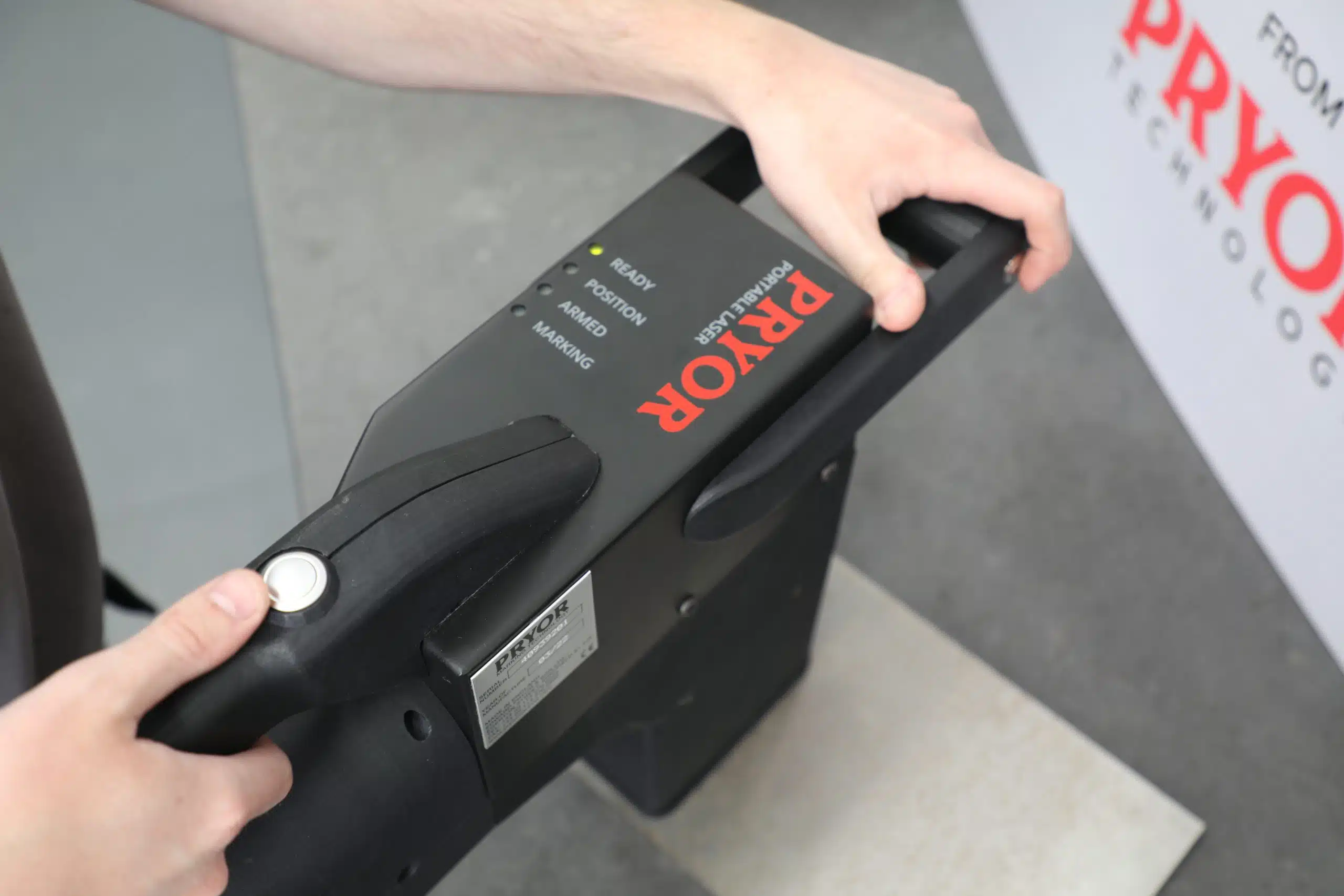

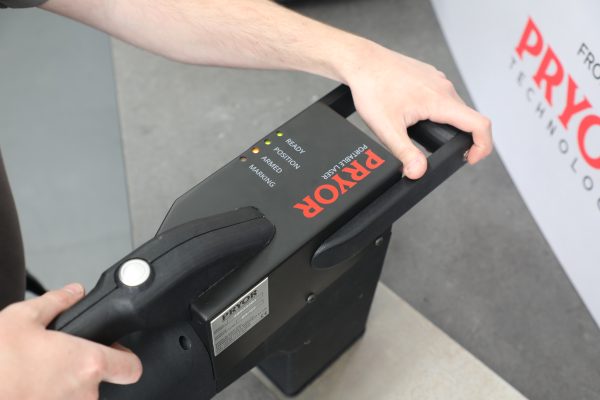

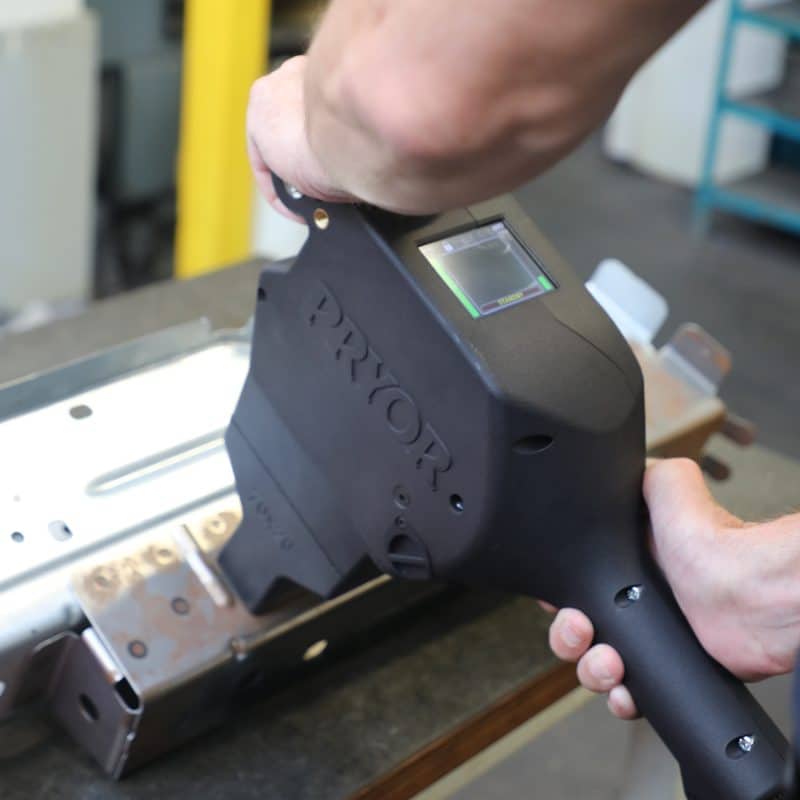

Handheld Laser Marking

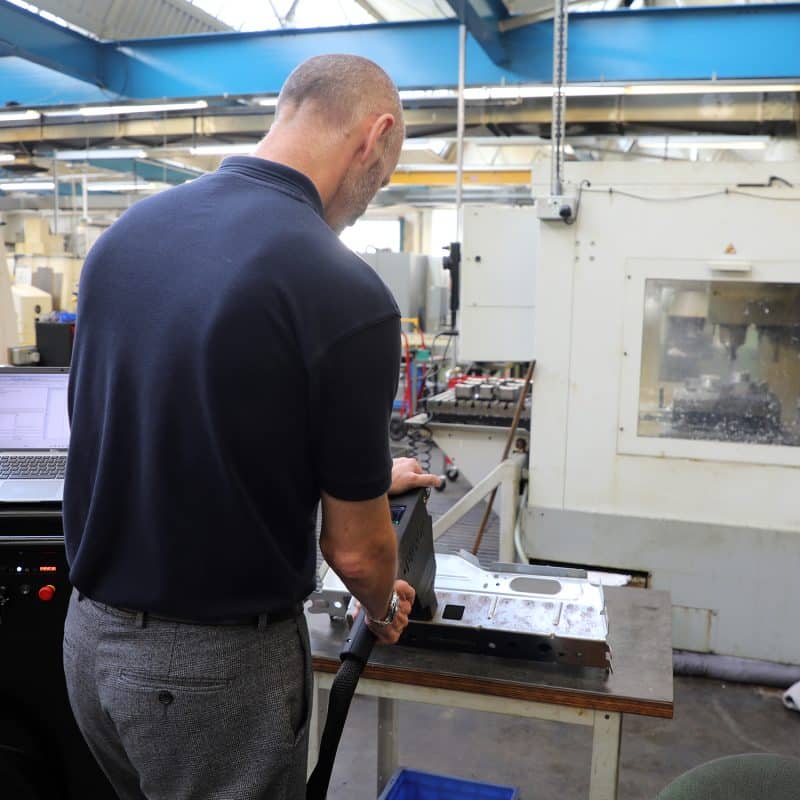

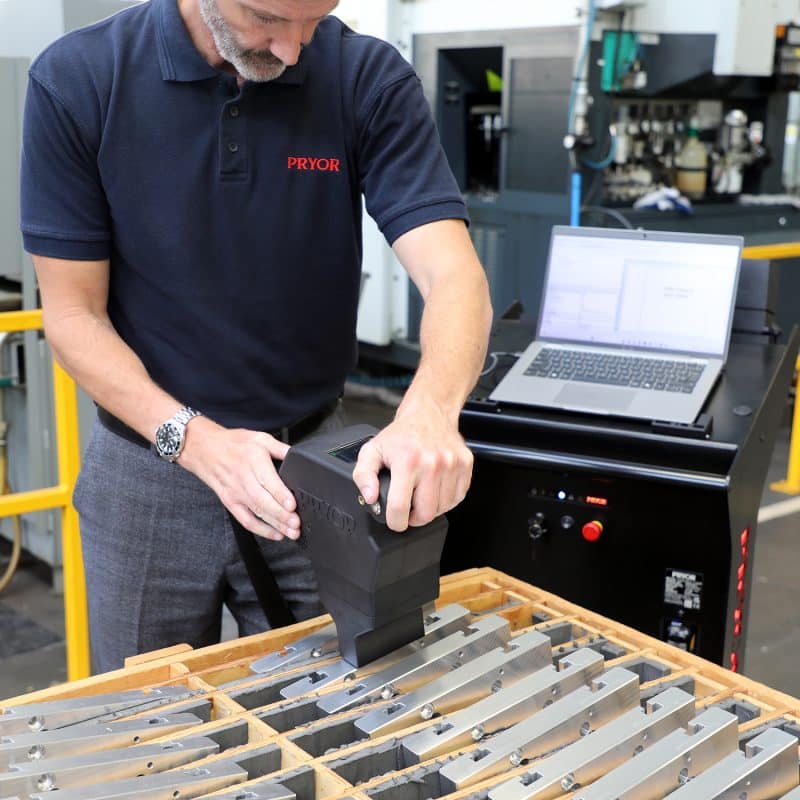

The Pryor Portable Laser Marker is mobile yet robust, and is easily carried around a workshop to quickly produce high definition laser engravings on many types of material. Laser marking provides the great variability in permanent marking, allowing detailed, aesthetically pleasing marks to be created, and therefore is a popular method of marking brand logos. This handheld laser engraver is ideal if versatility is important to your application, as it provides the highest number of options for various effects.

Portable Laser Marking Made Easy

Because laser marking requires no physical contact, the engraving does not create any stress points or deformation to the material being marked. This can be very useful for maintaining set specifications for the material, and also helps reduce consumable costs.

This portable laser comes with protective guarding to prevent any safety escapes, while still providing a viewing window and internal light to allow the user to monitor the progress of the marking. The Pryor Portable Laser engraving machine is the ideal solution to handheld laser marking.

Laser Marking Curved Superalloy Panels

Pryor developed a portable laser marking and traceability system for the Heart of Steel project in Sheffield, a charitable project raising money for the British Heart Foundation. Find out more about our specially adapted Portable Laser marking machine for the Heart of Steel project here

Video

Technical Data

Overview

Portable Laser Marking Machine Technical Data

  • Long term power stability: 1-3%
  • Operating Temperature: 0 to 42 degrees celsius
  • Active Air Cooling
  • 3m Fibre optic in protective conduit with 8mm collimator/isolator
  • Power: Less than 200 W – 110 or 220 V
  • Average diode life exceeds 50,000 hours
  • Standard frequency: 20 to 200 KHz
  • (Pro frequency: 1,6 to 1000 KHz to enable clean engraving with no need for after treatment.)
  • Standard pulse width: 100ns.
  • (Adjustable Pro pulse width: 4, 8, 14, 20, 30, 50, 100 and 200 ns)
  • Emergency stop
  • Interlocked safety switches
  • Protective guarding with viewing window

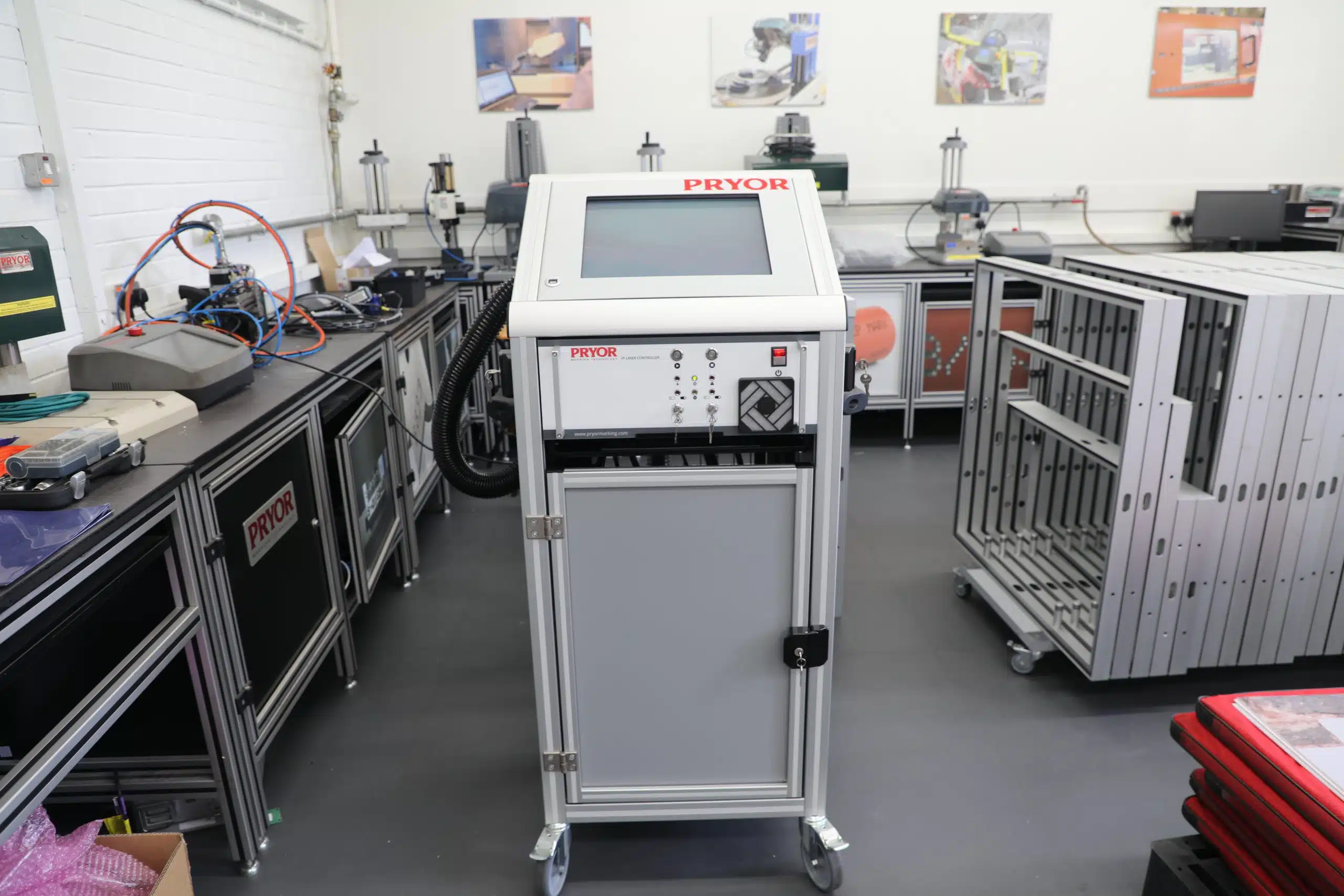

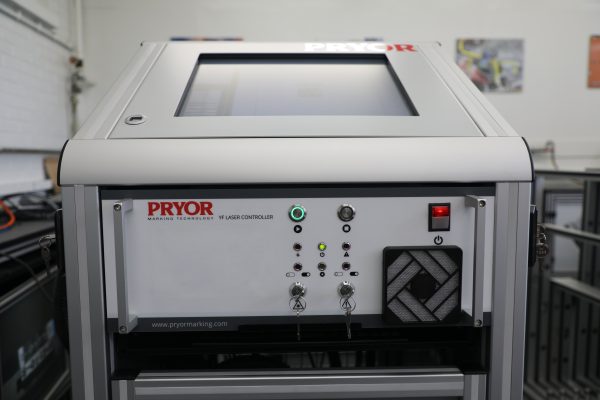

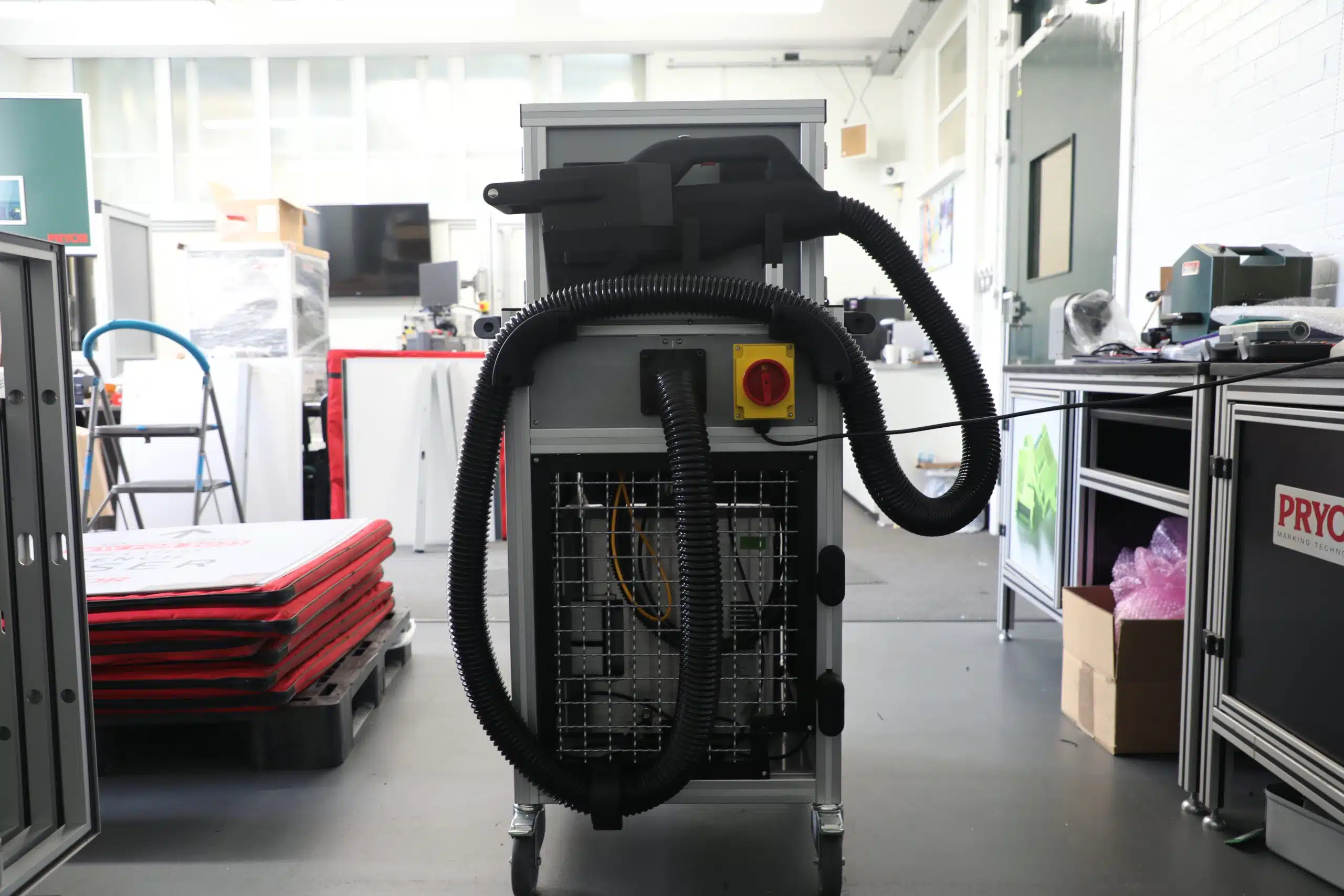

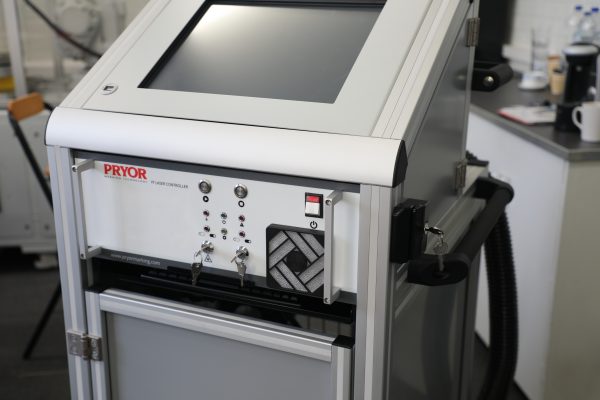

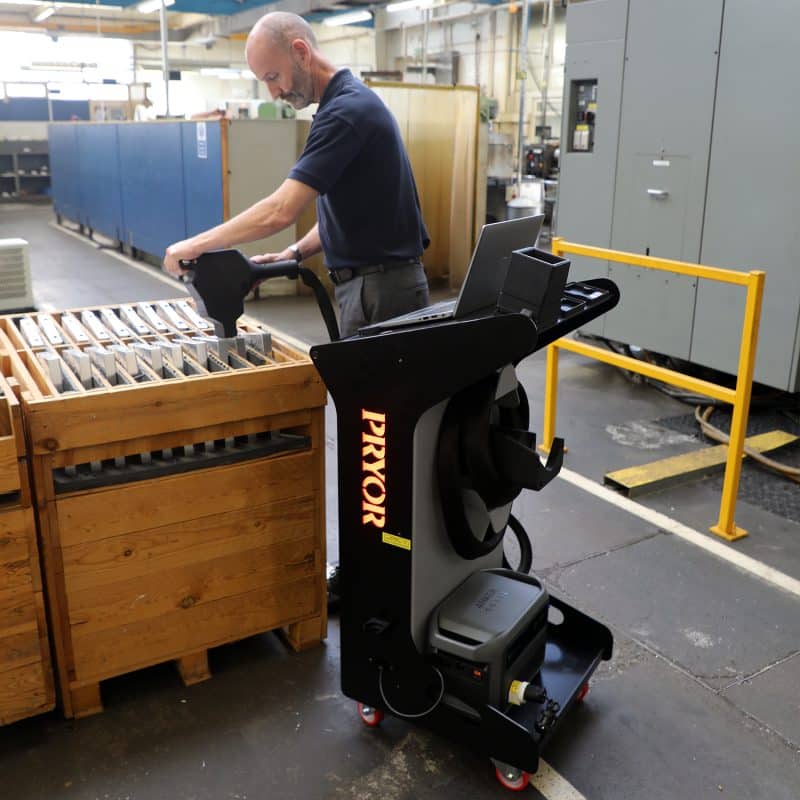

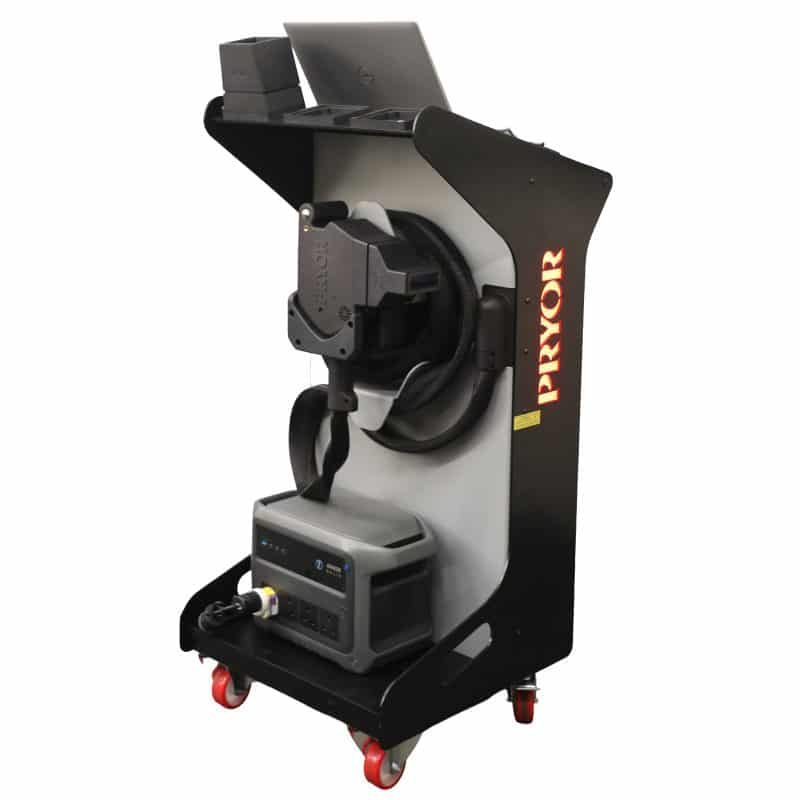

  • Dedicated trolley with inbuilt controller
  • Internal light

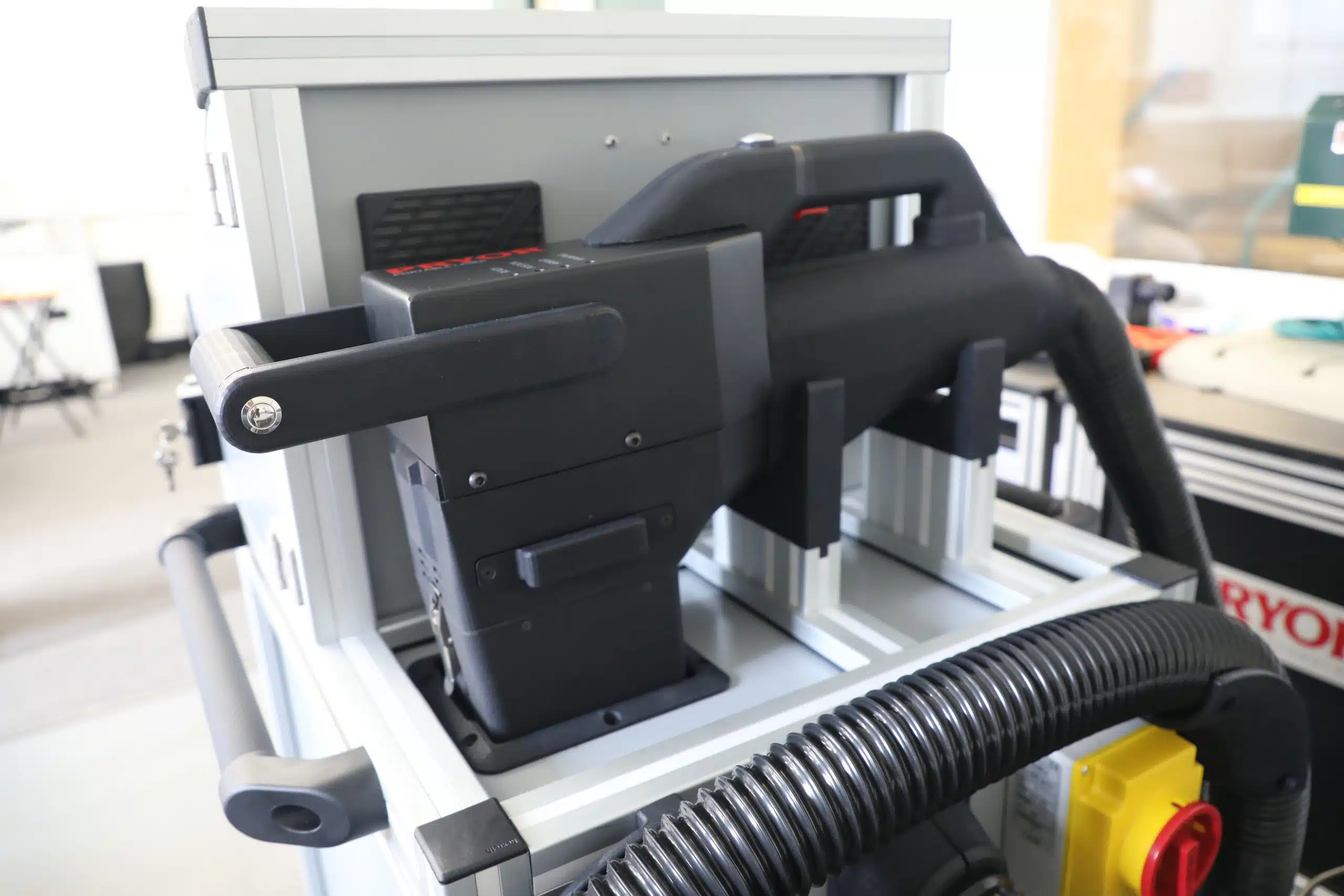

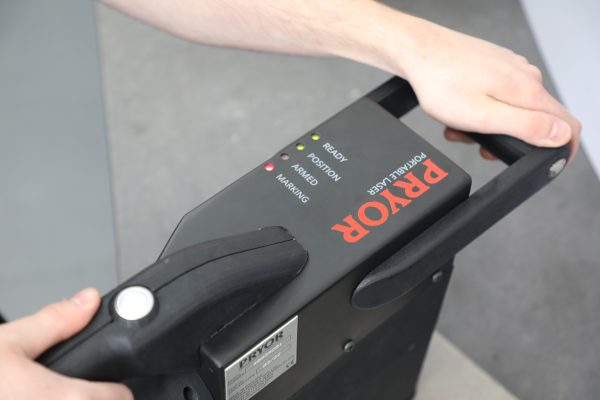

  • Large handles for easy positioning
Standard 20W 20W Pro Standard 50W
Pulse Energy 1mJ 1mJ 1mJ
Average power 20W 20W 50W
Msquared 1.6
Polarisation Random
Power Tunibility 5% to 100%
Pulse Duration @ 20KHz 100ns 4,8,14,20,30,50,100 & 200ns 120ns
Repetition Rate 20 KHz to 200KHz 1.6 KHz to 1000 KHz 50 KHz to 200 KHz
Long Term Power Stability 1 – 3%
Operating Temperature 0 to 42°C
Cooling Active Air Cooling
Fibre Optic 2 Meter Pigtail With 8mm Collimator/Isolator
Power Less Than 200W – 110 or 220 VAC
Warranty 2 years as standard
