PortaDot 100-75

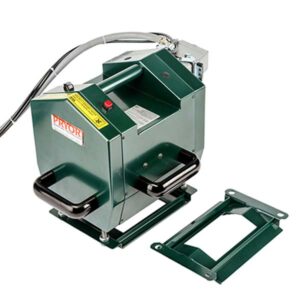

A heavyweight, high precision hand-held Dot Peen marking machine for deep marking on large / heavy components. The extra size and weight of the unit ensure there is no movement during marking. The PortaDot 100-75 is ideal for large, hard components in heavy industrial applications.
- Dot peen engraving of immobile, large / heavy components
- Rail industry marking
- Oil, gas and pipeline identification marking
- Casting / forging applications
- Chassis and engine VIN marking
- A pneumatic version for extra deep marking is available if required
- Controlled with Pryor’s 4000 Series Controller
- Flat X/Y movement with no pivoting axis provides consistent marking depth throughout marking area
- The standard machine is supplied with:
- Electromagnetic solenoid
- 5m cable
- Mains powered controller
A heavyweight, high precision hand-held Dot Peen marking machine for deep marking on large / heavy components. The extra size and weight of the unit ensure there is no movement during marking. The PortaDot 100-75 is ideal for large, hard components in heavy industrial applications.
- Features
- Deep Pneumatic Version
- Video
Features
- Heavy weight model to reduce movement during marking process
- Marking Area: 100mm x 75mm
- Comes with Pryor’s 4000 Series Controller as standard
- Fully compatible with Pryor’s PC based Traceability Software
- Standard electric version with the option of a pneumatic upgrade if a very deep mark is required
- Option to purchase an electromagnetic clamp to further reduce the possibility of movement during the marking process
- Large handles on two sides for stability when marking in both directions
- Standard Character Sizes: 0.18mm – 99.9mm in 0.18mm increments
- Marking Machine Dimensions: W: 329mm H: 307mm D: 267mm
- Series 4000 Controller dimensions: 375mm x 335mm x 132 mm
- Weight: Head 10.7kg | Cable 1kg | Series 4000 Controller 5kg
- Construction: Aluminium internals and cover
- Workpiece hardness: Max. 62 HRC (800HV)
- Operating temperature: 0ºC – 80ºC (32ºF – 176ºF)
- Drive Mechanism: lead screw
- Cable length: 5m standard
- Power supply: AC Input 50/60Hz; 100-240VAC
- Optional battery powered controller: 36V Li-Ion 3.0Ah/108Wh battery
- Marking type: 5×7, 7×9, Varidot, HPGL, BMP Logos, True Type Fonts, Data Matrix
- Connectivity Options: 1 x RS232, 1 x USB (that has the option of being removed to create 2 x RS232) and digital I/O (8 in 6 out) connectivity. Optional Ethernet TCP/IP and optional Field Bus.
- Dot Mark output styles: 5 x 7,7 x 9,Varidot, 2D Data Matrix, HPGL, BMP Logos
- Controller Memory Capacity: Up to 9000 layouts
- Controller features an industrial 10.4 inch touchscreen with additional option of connecting an external keyboards.
- On screen mark preview and trial run features
- Head cable industrial steel connector to easily disconnect the marking head when needed
- Pneumatic Air Supply requirements: Power 6 bar (87psi) non-lubricated, dry. (Deep Pneumatic version ONLY)
Deep Pneumatic Version
PortaDot Deep Pneumatic Dot Peen Marking Machine
The PortaDot 100-75 Deep Pneumatic dot-peen marking machine is a mobile impact marker capable of creating very deep marks. This product is ideal for oil and gas/pipeline marking, cast and forge marking and nuclear applications, or for creating deep identification marks that will later be coated with paint.
- Portable dot peen impact marking machine
- Capable of marking very deep marks
- Ideal for oil and gas/pipeline, cast and forge marking and nuclear applications
- Marks remain visible through paint coating
- Mobile
- Designed for stability, heavy weighted with large handles on two sides of the machine, enabling the user to easily operate the dot marker in both orientations.
