MarkMate

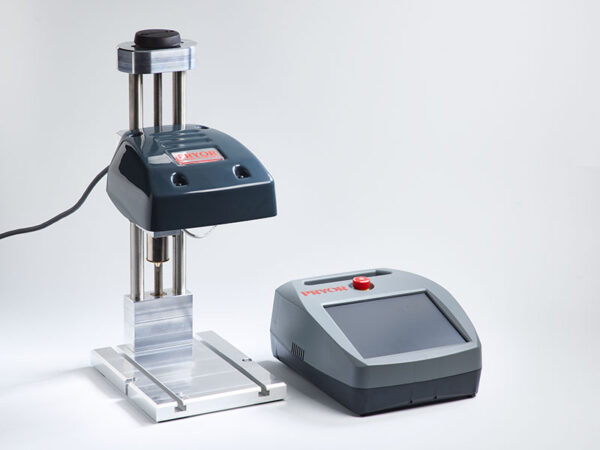

The MarkMate is a benchtop dot peen marking machine for engraving small to medium sized components with unique alphanumeric identification, manufacturer information, logos and 2D Barcodes.

Programmed using the 4000 Controller or Pryor’s PC based Traceability Software suite.

  • Programmable direct part marking
  • Serial and batch numbering
  • Logo and decorative marking
  • Security, inspection and certification marking
  • Label and tag marking
  • Component identification and traceability
Clear
SKU: N/A Categories: , ,

Features

Features

  • Marking Area: 100mm x 75mm
  • Standard Character Sizes: 0.18mm – 9.99mm in increments of 0.18mm
  • Marking Area: 100mm x 75mm
  • Marking Formats: 5 x 7, 7 x 9, Varidot and the USB version also offers all windows True Type fonts*, DXF, HPGL
  • Variable Marking Speed
  • Memory Capacity: 4000 controller = upto 4000 layouts, USB = Unlimited
  • Marking Machine weight: 13kg
  • Controller Weight (4000 controller): 6.5kg
  • Controller features an industrial 10.4 inch touchscreen with additional option of connecting an external keyboards.
  • The 4000 controller provides connectivity options through RS232 serial and digital I/O ports
  • USB version PC requirements: 1GHz Pentium or equivalent with USB port
  • USB version compatible operating systems: Windows  7, Windows 8 and Windows 10
  • The marking machine is powered by a standard 220 volt electric source (110 volt also available)
  • Machine dimensions: Height = 570mm, Width – 250mm, Depth = 295mm
  • Controller Dimensions (LCD): Height = 300, Width = 200, Depth = 280mm
  • Maximum of 15 characters for 2D barcodes
