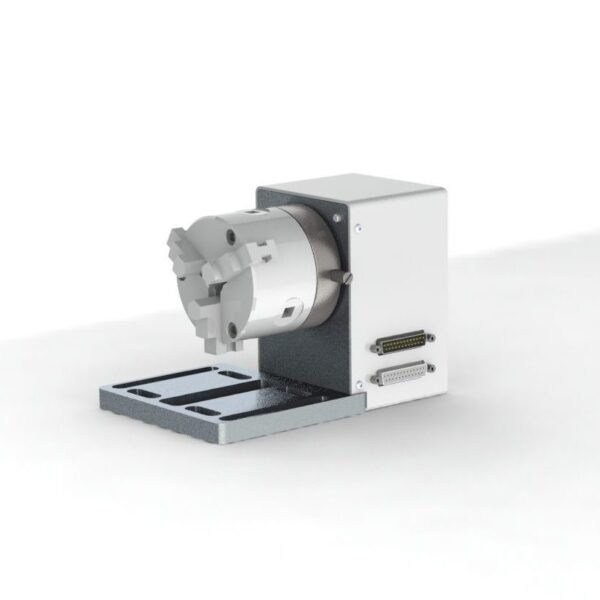

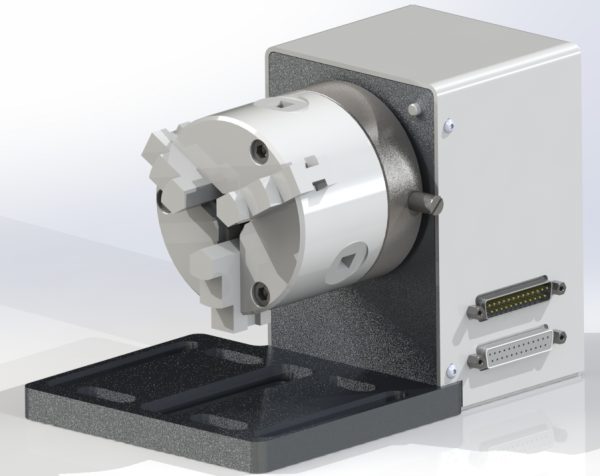

Standard Circumferential Axis for Laser

The Circumferential Marking Axis rotates cylindrical components to enable marking around the circumference of the part. This is a smaller, more compact version of our circumferential fixture, specifically design for use in our range of laser marking equipment

The Circumferential Marking Axis rotates cylindrical components to enable marking around the circumference of the part. This is a smaller, more compact version of our circumferential fixture, specifically design for use in our range of laser marking equipment. This product comes fitted with a Home sensor as standard.

Category:

Make an Enquiry

Technical Data

  • Chuck diameter: 80mm (larger diameters available on request)
  • Maximum grip diameter: 76mm – Stepped jaws included (custom jaws available on request)
  • Centre line height from base: 60mm (riser blocks and angle blocks available on request)
  • Maximum weight: 10kg (dependent on inertia of mass – may drive a larger mass with supplied outrigger supports)
  • Compatible with Pryor BenchDot, Pryor Markmate (standalone controller version) and Pryor Compact Cabinet Laser

Custom options available on request:

  • Various chuck diameters, up to 125mm without a riser block
  • Various grip diameters with custom jaws
  • Pneumatic chuck
