PortaDot 60-30 Touch – Ex-Demo Model
Ex-demo unit. One available.
| Stock reference | ED-101 |
| Model | PortaDot 60-30 Touch |
| Serial number | 4xxxxxxx |
| Date of manufacture | TBC |
| Condition | Grade B |
| Usage | Low |
| Previous use | Exhibitions / sales demonstrations |
| Software version | Updated to latest |
| Warranty | 3 months, parts and labour |
£3,500.00
- Machine Description
- More Features
- Portadot 60-30 Touch Videos
Machine Description

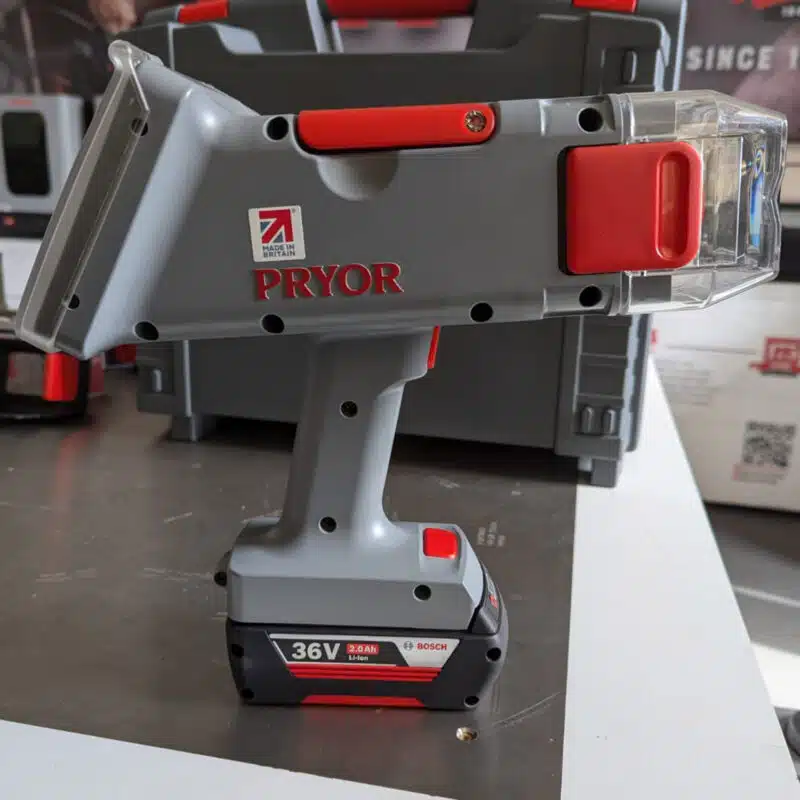

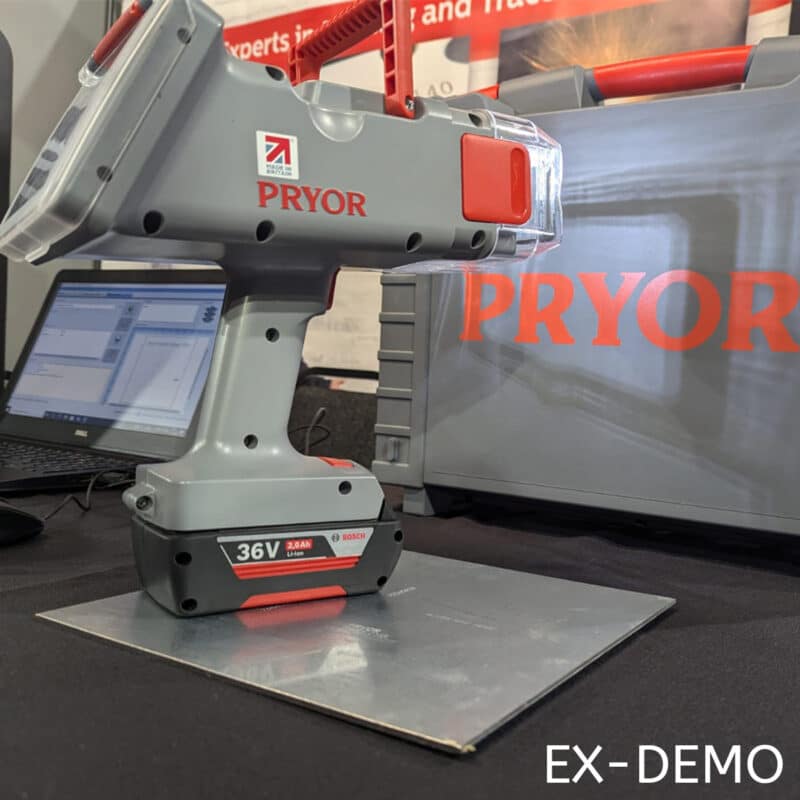

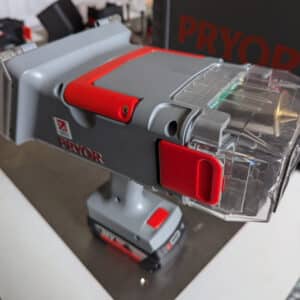

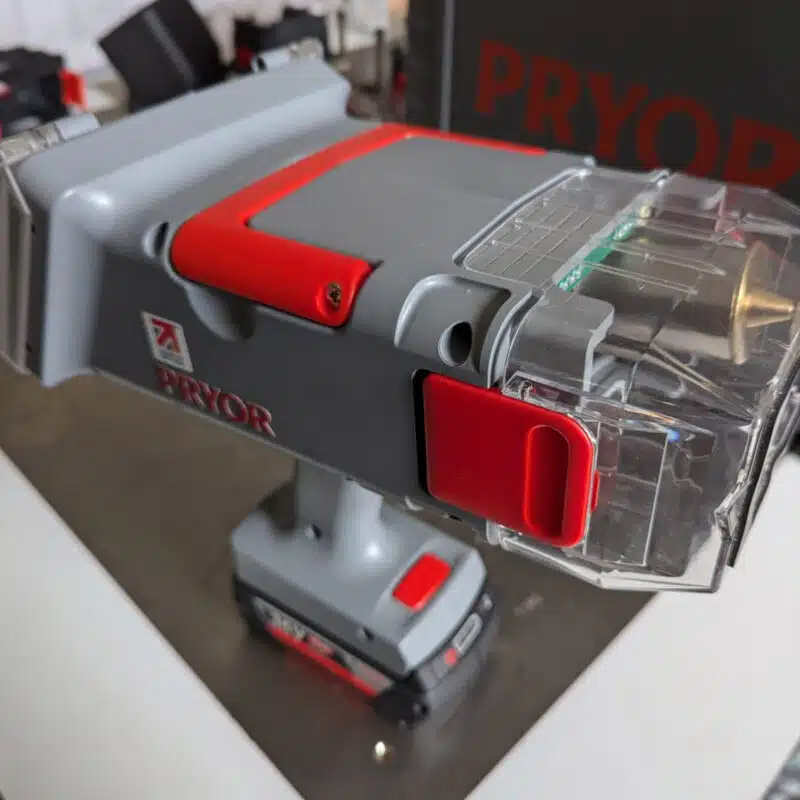

P60-30 Touch ex-demo
This P60-30 Touch was built in [year] and used at exhibitions and for sales demonstrations. It has been tested and serviced at our Sheffield factory, and updated to the latest software.
Condition
Grade B. It has some minor cosmetic damage to the outer casing and mask, and some rub marks on the side where it has been placed on a bench.
Work carried out
- Full functional test and service
- Updated to latest software
- Test marks completed on our standard sample material
What is included
- Marking machine
- Battery, charger and mains lead / power lead

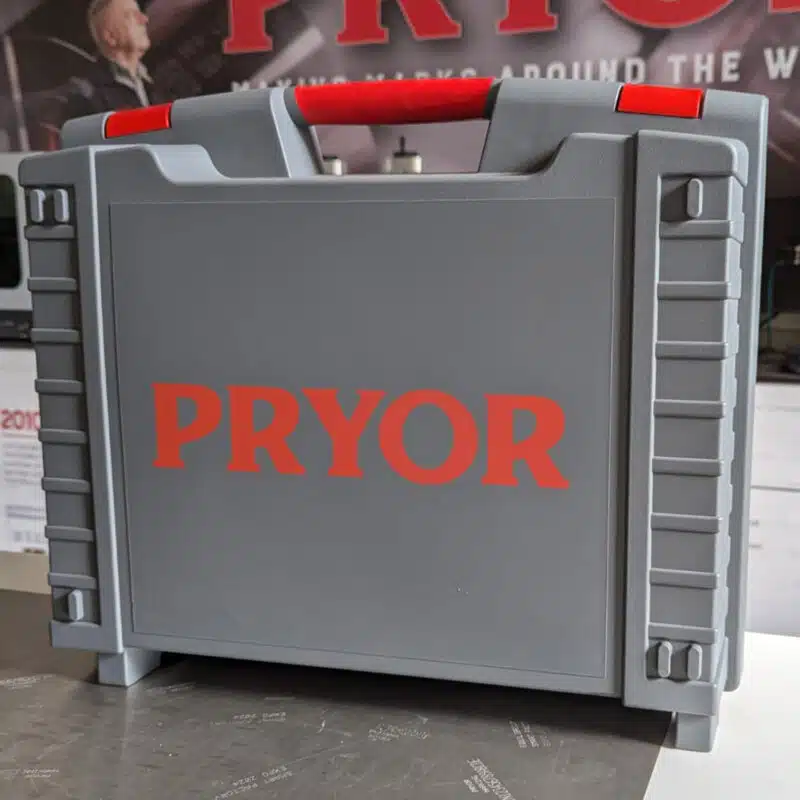

- Carry case
- Operator manual
About the P60-30 Touch
The PortaDot 60-30 Touch was launched in 2021 and quickly became our most popular machine due to its capabilities and flexibility. Powered by a 36V battery for all day use, it can be used wherever your marking job requires. Full details are on the product page.
Buying this machine
We can mark your sample parts on this machine before you buy. You are welcome to see it running at our Sheffield factory, or we can arrange a live video demonstration. Delivery, installation and training can be quoted separately. Call +44 (0)114 276 6044 or add it to your quote list to reserve it.
More Features
- Fully Portable, Lightweight Dot Peen Marking Machine
- 60mm x 30mm marking window
- High Power 36V, quick changeover, battery for deeper marking applications.
- Fully programmable touch screen interface with built-in screen-protector and stylus
- Suitable for engraving identification marks, logos or 2D barcode information
- Can permanently mark most engineering materials up to a maximum hardness of 62Hrc
- Standard Character Sizes: 0.19mm – 59.9mm in increments of 0.19mm (5×7 font) or 0.25mm (7×9 font)
- Dimensions: 295mm(H) x 170mm (W) x 303mm (L)
- Weight: Marking head/battery: 3.7kg
- Drive Mechanism: XY precision lead screws
- Adjustable face mask with horizontal and vertical ‘V’ grooves for tube/pipe marking.
- Dot Mark output styles: 5 x 7,7 x 9,Varidot, 2D Data Matrix, QR Code, HPGL, BMP Logos
- Connectivity options: USB A (USB Flash drive, USB Keyboard), USB B (PC USB-Com Connectivity), WiFi 802.11/b/g/d/h/i/n 2.4GHz (Wireless scanners, data logging, network interfacing)
- MS Excel (*.csv) marking and logging modes.
- Program memory capacity: up to 9000 layouts
- Integrated LED lighting with tilt activation
- On screen mark preview and trial run features
- Rugged carry case
- High Speed Battery Charger: AC Input 50/60Hz; 100-240VAC
Portadot 60-30 Touch Videos
10 Typical Applications of the Portadot 60-30 Touch
Overview Video
